Configuring the MicroSIP Softphone

Overview

The MicroSIP Softphone is a Windows-based softphone that can be used to test VOIP/SIP phone calls and SIP instant messaging. You must have a VOIP/SIP account to use this softphone.

Warning: if your computer does not have sound, pressing a button on the softphone keypad may not register the DTMF code (e.g. testing TopView alarm acknowledge). See the bottom of this post for more details and possible workaround.

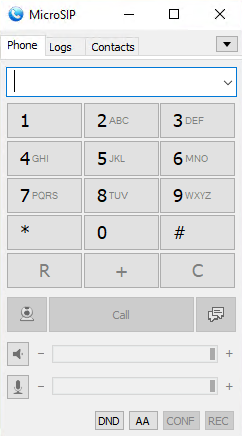

MicroSIP screen

Download and install the softphone

Go to the download page and click the MicroSIP-x.yy.z.exe at the top of the screen.

Example:

MicroSIP file

Configure an account

Click the down arrow in the upper right corner of the phone, then “Add Account…”

  • Account name: the display name of the account in the softphone (does not affect connection to the SIP server)
  • SIP Server: the IP address or hostname of the SIP server
  • SIP Proxy: the IP address or hostname of the SIP proxy (leave empty if not required for your SIP Server)
  • Username: the user name for the SIP account. May also be your extension number or phone number.
  • Domain: for most users, enter the SIP Server IP address or hostname again if your full SIP address is username@sipserver, otherwise enter the domain name for username@domainname
  • Login: enter your authorization name, also called the registration name or digest username. If blank will use the entered username.
  • Password: the registration password

You can also access MicroSIP help for these settings

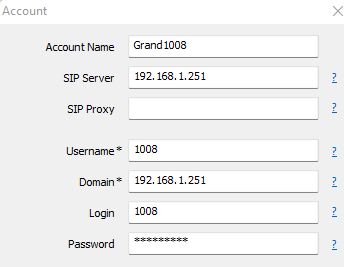

Here is an example of MicroSIP configured as extension 1008 for our Grandstream UCM device:

MicroSIP Account

Click the [Save] button to save your settings.

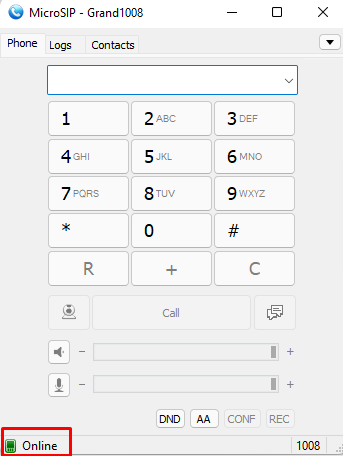

If the softphone successfully registers with your SIP server you will see “Online” at the bottom of the phone:

MicroSIP Grand1008

No sound heard during call

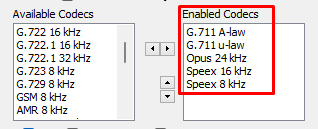

Lack of sound during a VOIP call is usually due to the codecs used during the call. We experienced this issue with OnSip and MicroSIP on some desktop but were able to resolve the issue by enabling the following codecs:

MicroSIP Enabled Codecs

DTMF code (key press) recognition

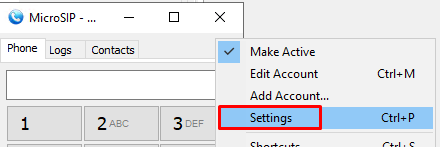

If the computer does not have sound, pressing a key on the softphone may not register. You should be able to change the DTMF method on the phone to resolve this issue.

DTMF Code

Change the DTMF mode to SIP-INFO and save the settings:

DTMF to SIP-INFO
MicroSIP Enabled Codecs
