TopView Mobile Web App

The easiest way to view live process data and alarms on a mobile device

View Tag Data and Acknowledge Alarms on your mobile device

Mobile TopView users can:

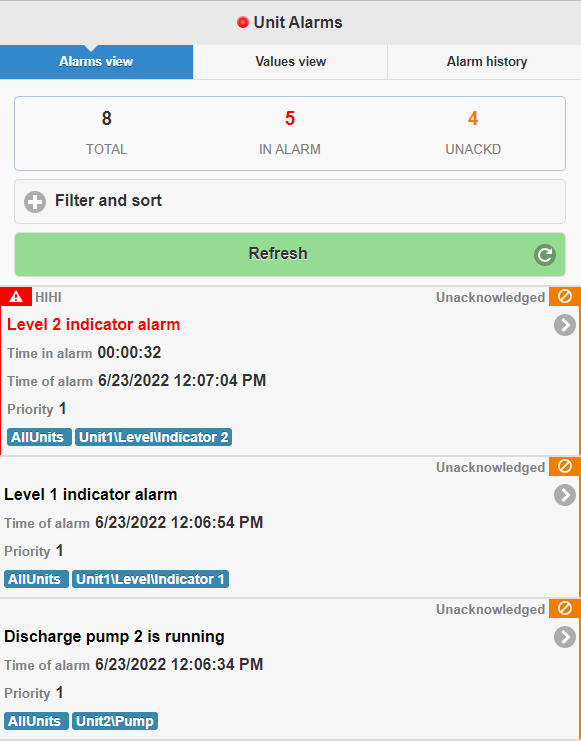

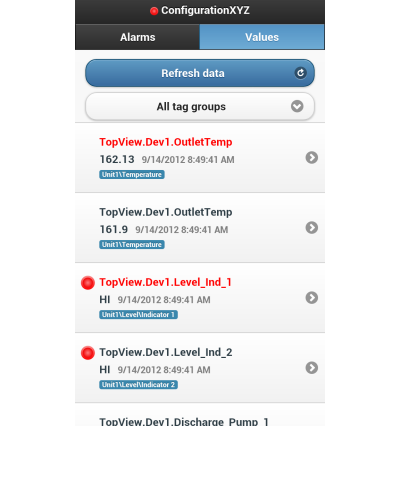

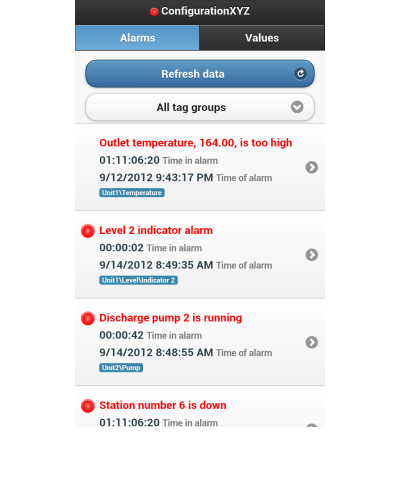

  • Monitor alarms and tag values
  • Acknowledge alarms
  • Filter the view by Tag Group, alarm state, and acknowledge state

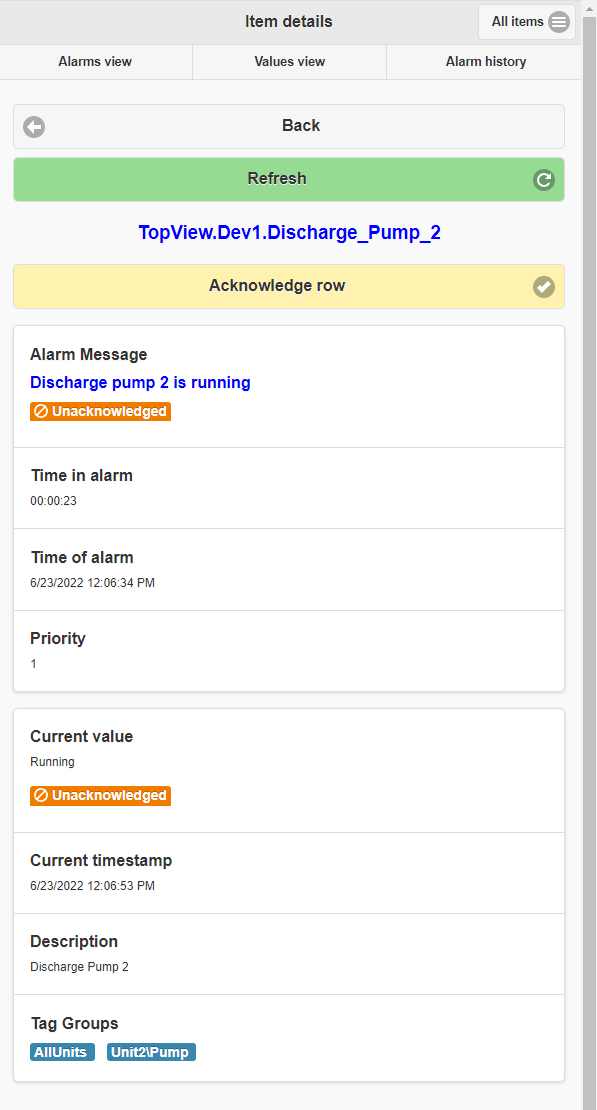

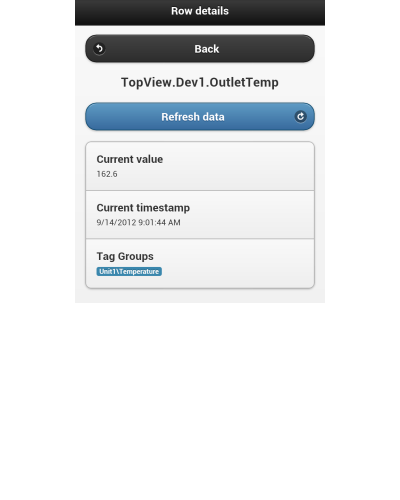

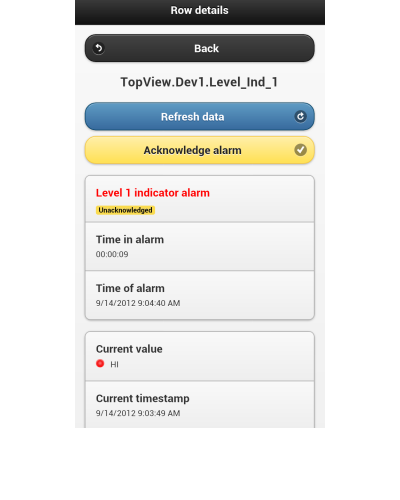

  • Examine tag details

The TopView Mobile Web App runs in any modern browser and does not require an app installation. Since the web application is hosted within the TopView engine, on your systems, there is no complicated IIS installation required nor is there any data sent outside of your own servers.

mobilewebview_devices
Supported devices include
Android, Apple iOS (iPhone, iPad), any Desktop OS, or any other device that can run a modern web browser.
mobileLogos

Note: the TopView Mobile Web App interface is optimized for mobile device web browsers, but it can also be viewed in desktop browsers.


Try the live demo

Configure and use in under 5 minutes
Watch the video

The TopView Mobile Web App is available for all TopView versions (full, evaluation, and FREE) including TopView OPC/SCADA, TopView PI, TopView SQL (OLEDB/ODBC) and TopView PerfMon.

btn-informationLearn more about TopView, download evaluation or FREE version…

Overview: Using the Mobile Web App

Each TopView Engine instance (configuration) can enable the TopView web server – the host of the Mobile Web App.

The web server is embedded within the TopView Engine. We are not using an external web server (e.g. IIS), so there are no additional requirements or installation steps.

The web server can be enabled or disabled per TopView Engine instance using the TopView Configurator. The user can also select the port for use by the embedded web server, and can optionally enable user security (login).

Once the web server is enabled and the TopView Engine is running, users with network access to the TopView computer (including mobile devices browsers) can access the Mobile Web App through the URL http://topviewcomputer:port where topviewcomputer is the computer name or IP address of the TopView computer and port is the user-selected port.

It’s that easy – no web server configuration, nothing to install on client devices. Watch the 4 minute video…

Requirements:

Operating System Requirements

For the best performance and reliability, we recommend running the TopView Engine (host of the Mobile Web App) from a Windows Vista or later desktop, and Server 2008 or later server machine

Minimum OS requirements

  • Windows XP SP2 and above
  • Windows Server 2003 and above

Browser requirements

The TopView Mobile Web App was designed with Apple iOS and Google Android versions in mind, and we recommend viewing the mobile app from your mobile phone. Modern desktop browsers also work well for viewing the mobile app.

Javascript must be enabled on the mobile browser in order to use the TopView Mobile Web App.

Cookies must be enabled to use security functionality.

Recommended browsers

The TopView mobile app will look better on some browsers than others. We recommend:

For mobile phones:

  • Android 2.2/2.3 (Froyo and Gingerbread)
  • Android 4 (Ice Cream Sandwich)
  • Apple iOS 5/6

For the desktop:

Minimum browser requirements

  • iOS 4 on an Apple device
  • Android 2.2/2.3 (Froyo and Gingerbread)
  • Internet Explorer 7
    IE 6 is not supported natively as a browser for the TopView mobile app.

tv_mobilewebapp_overview_350

Live Demo:

Try the TopView Mobile Web App on your mobile device now

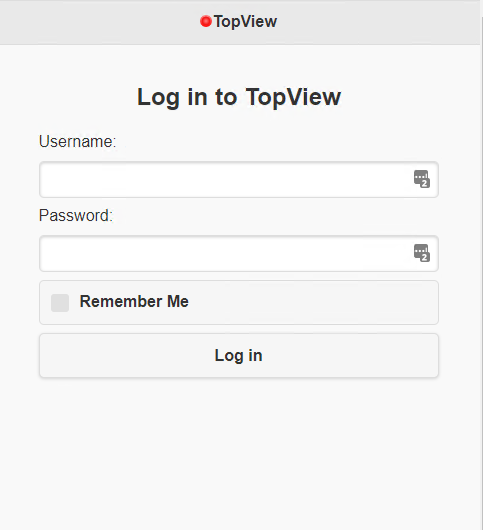

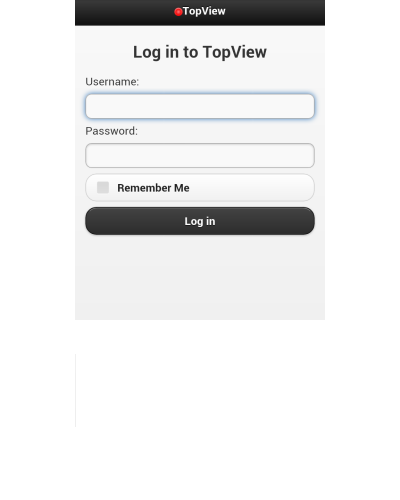

Note: Once you click the URL, log in with user=test and password=test

URL: https://www.exele.com/topviewmobilewebapp

Username: test

Password: test

We suggest that you try the demo link from a mobile browser. Your screen should look like the samples above.

If using a desktop browser, this site may not display properly unless you are using a newer version of the browser. If using Internet Explorer, we suggest IE8 or later. Chrome, Safari, and newer Firefox are also OK. JavaScript must be enabled.

We will be periodically updating this site as we continue to develop TopView Mobile Web App. If the site becomes unavailable at some point, check back in a few minutes. If you cannot access the site after multiple attempts, please contact support@exele.com.

A few instructions for using the live demo:


Video:

Configure and Use the Mobile Web App in under 5 minutes
